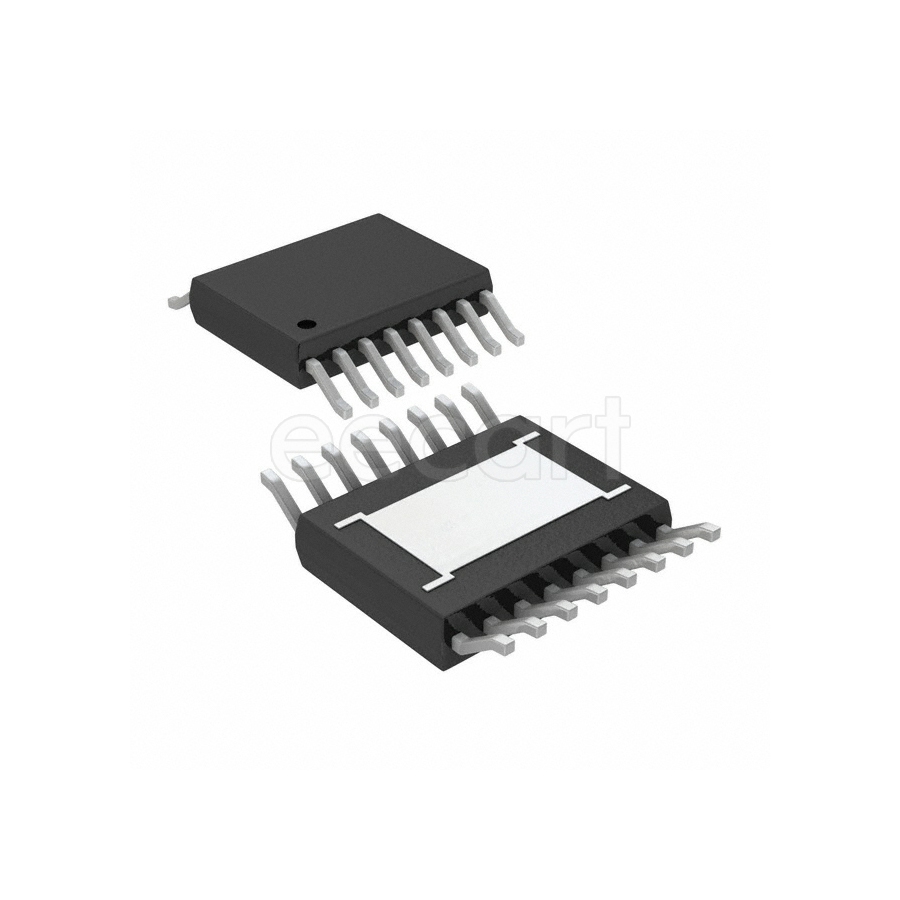

ZXLD1370EST16TC
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZXLD1370EST16TC
Datasheet:
Description:
LED Drivers TSSOP-16 EP SMD/SMT PWM 300 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 1 MHz |
| Type | DC DC Controller |
| Min Input Voltage | 6.3 V |
| Output Current | 300 mA |
| Output Voltage | 60 V |
| Max Supply Voltage | 60 V |
| Min Supply Voltage | 8 V |
| Number of Channels | 1 |
| Max Supply Current | 11 µA |
| High Level Output Current | 18 mA |
| Topology | Buck-Boost |
| Switching Frequency | 1 MHz |
| Max Input Voltage | 60 V |
| Number of Outputs | 1 |
| Dimming | PWM |
| Efficiency | 92 % |
| Number of Segments | 15 |
| Schedule B | 8542390000 |
| Internal Switch | No |
Stock: 1279
Distributors
pcbx
pcbxUnit Price$1.64534
Ext.Price$1.64534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.64534 | $1.64534 |
| 10 | $1.41946 | $14.19460 |
| 25 | $1.32112 | $33.02800 |
| 50 | $1.22959 | $61.47950 |
| 100 | $1.14441 | $114.44100 |
| 300 | $1.11105 | $333.31500 |
| 500 | $1.07864 | $539.32000 |
| 1000 | $1.04935 | $1049.35000 |
